WebRTC-视频演示

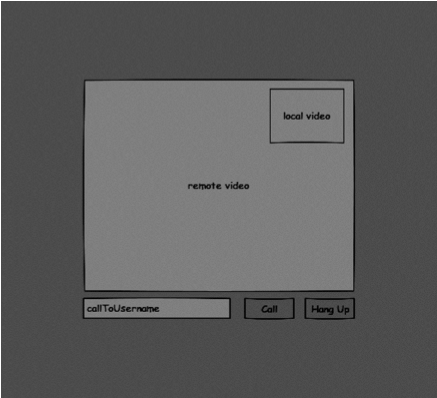

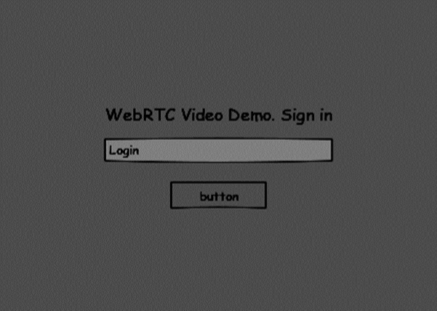

在本章中，我们将构建一个客户端应用程序，该客户端应用程序允许两个不同设备上的用户使用WebRTC进行通信。我们的应用程序将有两页。一个用于登录，另一个用于呼叫另一个用户。

这两个页面将是div标签。大多数输入是通过简单的事件处理程序完成的。

信令服务器

要创建WebRTC连接，客户端必须能够在不使用WebRTC对等连接的情况下传输消息。在这里我们将使用HTML5 WebSockets-两个端点之间的双向套接字连接-Web服务器和Web浏览器。现在让我们开始使用WebSocket库。创建server.js文件并插入以下代码：

//require our websocket library
var WebSocketServer = require('ws').Server;

//creating a websocket server at port 9090
var wss = new WebSocketServer({port: 9090});

//when a user connects to our sever
wss.on('connection', function(connection) {
   console.log("user connected");

   //when server gets a message from a connected user
   connection.on('message', function(message) {
      console.log("Got message from a user:", message);
   });

   connection.send("Hello from server");
});

第一行需要我们已经安装的WebSocket库。然后，我们在端口9090上创建一个套接字服务器。接下来，我们监听连接事件。当用户与服务器建立WebSocket连接时，将执行此代码。然后，我们收听用户发送的任何消息。最后，我们向连接的用户发送回复，说“来自服务器的问候”。

在信令服务器中，我们将为每个连接使用基于字符串的用户名，以便我们知道将消息发送到哪里。让我们稍微改变一下连接处理程序：

connection.on('message', function(message) {
   var data;

   //accepting only JSON messages
   try {
      data = JSON.parse(message);
   } catch (e) {
      console.log("Invalid JSON");
      data = {};
   }
});

这样，我们仅接受JSON消息。接下来，我们需要将所有连接的用户存储在某个地方。我们将使用一个简单的Javascript对象。更改文件的顶部：

//require our websocket library
var WebSocketServer = require('ws').Server;

//creating a websocket server at port 9090
var wss = new WebSocketServer({port: 9090});

//all connected to the server users
var users = {};

我们将为来自客户端的每条消息添加一个类型字段。例如，如果用户要登录，则他发送登录类型消息。让我们定义它：

connection.on('message', function(message) {
   var data;

   //accepting only JSON messages
   try {
      data = JSON.parse(message);
   } catch (e) {
      console.log("Invalid JSON");
      data = {};
   }

   //switching type of the user message
   switch (data.type) {
      //when a user tries to login
      case "login":
         console.log("User logged:", data.name);

         //if anyone is logged in with this username then refuse
         if(users[data.name]) {
            sendTo(connection, {
               type: "login",
               success: false
            });
         } else {
            //save user connection on the server
            users[data.name] = connection;
            connection.name = data.name;

            sendTo(connection, {
               type: "login",
               success: true
            });
         }

         break;

      default:
         sendTo(connection, {
            type: "error",
            message: "Command no found: " + data.type
         });

         break;
   }
});

如果用户使用登录类型发送消息。

• 检查是否有人已经使用该用户名登录
• 如果是这样，则告诉用户他尚未成功登录
• 如果没有人使用此用户名，则将用户名添加为连接对象的键。
• 如果无法识别命令，我们将发送错误。

以下代码是用于将消息发送到连接的帮助程序功能。将其添加到server.js文件。

function sendTo(connection, message) {
   connection.send(JSON.stringify(message));
}

当用户断开连接时，我们应该清理其连接。当关闭事件触发时，我们可以删除用户。将以下代码添加到连接处理程序-

connection.on("close", function() {
   if(connection.name) {
      delete users[connection.name];
   }
});

成功登录后，用户要呼叫另一个。他应该向其他用户提出要约。添加报价处理程序-

case "offer":
   //for ex. UserA wants to call UserB
   console.log("Sending offer to: ", data.name);

   //if UserB exists then send him offer details
   var conn = users[data.name];

   if(conn != null) {
      //setting that UserA connected with UserB
      connection.otherName = data.name;

      sendTo(conn, {
         type: "offer",
         offer: data.offer,
         name: connection.name
      });

   }

   break;

首先，我们获得了要呼叫的用户的连接。如果存在，我们会向他发送报价详细信息。我们还将otherName添加到连接对象。这样做是为了以后找到它的简单性。

对响应进行回答的方式与要约处理程序中使用的方式类似。我们的服务器刚刚通过的所有消息的答案给其他用户。添加后，下面的代码提供处理程序：

case "answer":
   console.log("Sending answer to: ", data.name);

   //for ex. UserB answers UserA
   var conn = users[data.name];

   if(conn != null) {
      connection.otherName = data.name;

      sendTo(conn, {
         type: "answer",
         answer: data.answer
      });
   }

   break;

最后一部分是处理用户之间的ICE候选者。我们使用相同的技术只是在用户之间传递消息。主要区别在于候选消息可能以任意顺序在每个用户身上多次出现。添加候选处理程序：

case "candidate":
   console.log("Sending candidate to:",data.name);
   var conn = users[data.name];

   if(conn != null) {
      sendTo(conn, {
         type: "candidate",
         candidate: data.candidate
      });
   }

   break;

为了允许我们的用户与另一个用户断开连接，我们应该实现挂断功能。它还将告诉服务器删除所有用户引用。添加处理程序：

case "leave":
   console.log("Disconnecting from", data.name);
   var conn = users[data.name];
   conn.otherName = null;

   //notify the other user so he can disconnect his peer connection
   if(conn != null) {
      sendTo(conn, {
         type: "leave"
      });
   }

   break;

这还将向其他用户发送请假事件，以便他可以相应地断开其对等连接。当用户从信令服务器断开连接时，我们也应该处理这种情况。让我们修改关闭处理程序-

connection.on("close", function() {

   if(connection.name) {
      delete users[connection.name];

      if(connection.otherName) {
         console.log("Disconnecting from ", connection.otherName);
         var conn = users[connection.otherName];
         conn.otherName = null;

         if(conn != null) {
            sendTo(conn, {
               type: "leave"
            });
         }

      }
   }
});

以下是我们的信令服务器的完整代码：

//require our websocket library
var WebSocketServer = require('ws').Server;

//creating a websocket server at port 9090
var wss = new WebSocketServer({port: 9090});

//all connected to the server users
var users = {};

//when a user connects to our sever
wss.on('connection', function(connection) {

   console.log("User connected");

   //when server gets a message from a connected user
   connection.on('message', function(message) {

      var data;

      //accepting only JSON messages
      try {
         data = JSON.parse(message);
      } catch (e) {
         console.log("Invalid JSON");
         data = {};
      }

      //switching type of the user message
      switch (data.type) {
         //when a user tries to login
         case "login":
            console.log("User logged", data.name);

            //if anyone is logged in with this username then refuse
            if(users[data.name]) {
               sendTo(connection, {
                  type: "login",
                  success: false
               });
            } else {
               //save user connection on the server
               users[data.name] = connection;
               connection.name = data.name;

               sendTo(connection, {
                  type: "login",
                  success: true
               });
            }

            break;

         case "offer":
            //for ex. UserA wants to call UserB
            console.log("Sending offer to: ", data.name);

            //if UserB exists then send him offer details
            var conn = users[data.name];

            if(conn != null) {
               //setting that UserA connected with UserB
               connection.otherName = data.name;

               sendTo(conn, {
                  type: "offer",
                  offer: data.offer,
                  name: connection.name
               });
            }

            break;

         case "answer":
            console.log("Sending answer to: ", data.name);
            //for ex. UserB answers UserA
            var conn = users[data.name];

            if(conn != null) {
               connection.otherName = data.name;
               sendTo(conn, {
                  type: "answer",
                  answer: data.answer
               });
            }

            break;

         case "candidate":
            console.log("Sending candidate to:",data.name);
            var conn = users[data.name];

            if(conn != null) {
               sendTo(conn, {
                  type: "candidate",
                  candidate: data.candidate
               });
            }

            break;

         case "leave":
            console.log("Disconnecting from", data.name);
            var conn = users[data.name];
            conn.otherName = null;

            //notify the other user so he can disconnect his peer connection
            if(conn != null) {
               sendTo(conn, {
                  type: "leave"
              });
            }

            break;

         default:
            sendTo(connection, {
               type: "error",
               message: "Command not found: " + data.type
            });

            break;
      }

   });

   //when user exits, for example closes a browser window
   //this may help if we are still in "offer","answer" or "candidate" state
   connection.on("close", function() {

      if(connection.name) {
         delete users[connection.name];

         if(connection.otherName) {
            console.log("Disconnecting from ", connection.otherName);
            var conn = users[connection.otherName];
            conn.otherName = null;

            if(conn != null) {
               sendTo(conn, {
                  type: "leave"
               });
            }
         }
      }

   });

   connection.send("Hello world");
});

function sendTo(connection, message) {
   connection.send(JSON.stringify(message));
}

客户申请

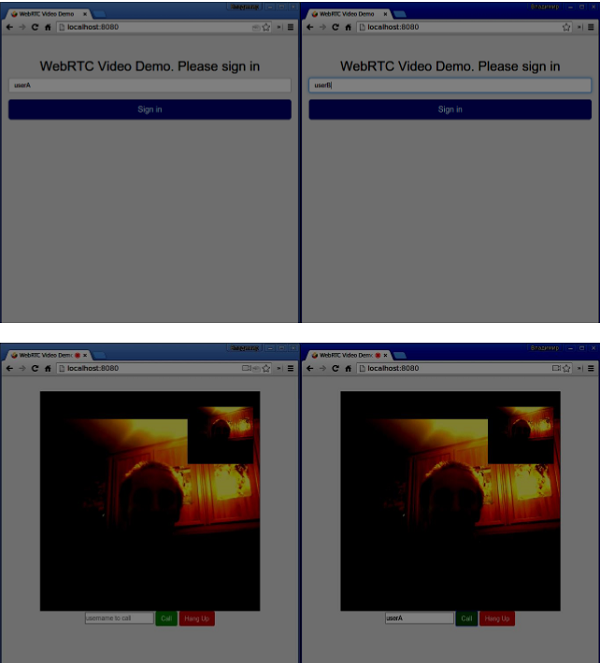

测试此应用程序的一种方法是打开两个浏览器选项卡，然后尝试彼此调用。

首先，我们需要安装引导程序库。Bootstrap是用于开发Web应用程序的前端框架。您可以在http://getbootstrap.com/上了解更多信息。创建一个名为“ videochat”的文件夹。这将是我们的根应用程序文件夹。在此文件夹中创建一个文件package.json（管理npm依赖项是必需的）并添加以下内容。

{
   "name": "webrtc-videochat",
   "version": "0.1.0",
   "description": "webrtc-videochat",
   "author": "Author",
   "license": "BSD-2-Clause"
}

然后运行npm install bootstrap。这会将引导程序库安装在videochat / node_modules文件夹中。

现在我们需要创建一个基本的HTML页面。使用以下代码在根文件夹中创建index.html文件。

<html>

   <head>
      <title>WebRTC Video Demo</title>
      <link rel = "stylesheet" href = "node_modules/bootstrap/dist/css/bootstrap.min.css"/>
   </head>

   <style>

      body {
         background: #eee;
         padding: 5% 0;
      }

      video {
         background: black;
         border: 1px solid gray;
      }

      .call-page {
         position: relative;
         display: block;
         margin: 0 auto;
         width: 500px;
         height: 500px;
      }

      #localVideo {
         width: 150px;
         height: 150px;
         position: absolute;
         top: 15px;
         right: 15px;
      }

      #remoteVideo {
         width: 500px;
         height: 500px;
      }

   </style>

   <body>

   <div id = "loginPage" class = "container text-center">

      <div class = "row">
         <div class = "col-md-4 col-md-offset-4">

            <h2>WebRTC Video Demo. Please sign in</h2>
            <label for = "usernameInput" class = "sr-only">Login</label>
            <input type = "email" id = "usernameInput" c
               lass = "form-control formgroup" placeholder = "Login"
               required = "" autofocus = "">
            <button id = "loginBtn" class = "btn btn-lg btn-primary btnblock">
               Sign in</button>

         </div>
      </div>

   </div>

   <div id = "callPage" class = "call-page">
      <video id = "localVideo" autoplay></video>
      <video id = "remoteVideo" autoplay></video>

      <div class = "row text-center">
         <div class = "col-md-12">
            <input id = "callToUsernameInput" type = "text"
               placeholder = "username to call" />
            <button id = "callBtn" class = "btn-success btn">Call</button>
            <button id = "hangUpBtn" class = "btn-danger btn">Hang Up</button>
         </div>
      </div>

   </div>

   <script src = "client.js"></script>

   </body>

</html>

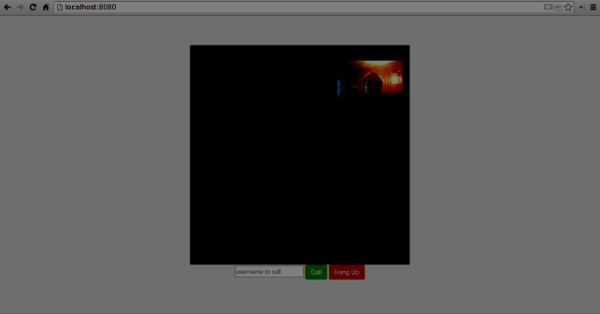

您应该熟悉此页面。我们添加了引导css文件。我们还定义了两个页面。最后，我们创建了几个文本字段和按钮，用于从用户那里获取信息。您应该看到本地和远程视频流的两个视频元素。请注意，我们已经添加了指向client.js文件的链接。

现在我们需要与我们的信令服务器建立连接。使用以下代码在根文件夹中创建client.js文件。

//our username
var name;
var connectedUser;

//connecting to our signaling server
var conn = new WebSocket('ws://localhost:9090');

conn.onopen = function () {
   console.log("Connected to the signaling server");
};

//when we got a message from a signaling server
conn.onmessage = function (msg) {
   console.log("Got message", msg.data);

   var data = JSON.parse(msg.data);

   switch(data.type) {
      case "login":
         handleLogin(data.success);
         break;
      //when somebody wants to call us
      case "offer":
         handleOffer(data.offer, data.name);
         break;
      case "answer":
         handleAnswer(data.answer);
         break;
      //when a remote peer sends an ice candidate to us
      case "candidate":
         handleCandidate(data.candidate);
         break;
      case "leave":
         handleLeave();
         break;
      default:
         break;
   }
};

conn.onerror = function (err) {
   console.log("Got error", err);
};

//alias for sending JSON encoded messages
function send(message) {
   //attach the other peer username to our messages
   if (connectedUser) {
      message.name = connectedUser;
   }

   conn.send(JSON.stringify(message));
};

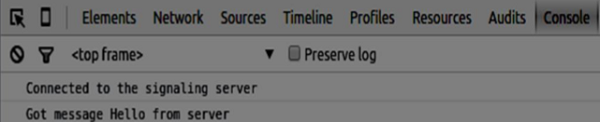

现在通过节点服务器运行我们的信令服务器。然后，在根文件夹中运行static命令并在浏览器中打开页面。您应该看到以下控制台输出：

下一步是使用唯一的用户名实现用户登录。我们只需将用户名发送到服务器，然后服务器告诉我们是否已使用该用户名。将以下代码添加到client.js文件中。

//******
//UI selectors block
//******

var loginPage = document.querySelector('#loginPage');
var usernameInput = document.querySelector('#usernameInput');
var loginBtn = document.querySelector('#loginBtn');

var callPage = document.querySelector('#callPage');
var callToUsernameInput = document.querySelector('#callToUsernameInput');
var callBtn = document.querySelector('#callBtn');

var hangUpBtn = document.querySelector('#hangUpBtn');

//hide call page
callPage.style.display = "none";

// Login when the user clicks the button
loginBtn.addEventListener("click", function (event) {
   name = usernameInput.value;

   if (name.length > 0) {
      send({
         type: "login",
         name: name
      });
   }

});

function handleLogin(success) {

   if (success === false) {
      alert("Ooops...try a different username");
   } else {
      //display the call page if login is successful
      loginPage.style.display = "none";
      callPage.style.display = "block";
      //start peer connection
   }
};

首先，我们选择一些对页面上元素的引用。我们隐藏了呼叫页面。然后，我们在登录按钮上添加一个事件侦听器。当用户单击它时，我们会将其用户名发送到服务器。最后，我们实现handleLogin回调。如果登录成功，我们将显示呼叫页面并开始建立对等连接。

要启动对等连接，我们需要：

• 从网络摄像机获取流。
• 创建RTCPeerConnection对象。

将以下代码添加到“ UI选择器块”。

var localVideo = document.querySelector('#localVideo');
var remoteVideo = document.querySelector('#remoteVideo');

var yourConn;
var stream;

修改handleLogin函数-

function handleLogin(success) {

   if (success === false) {
      alert("Ooops...try a different username");
   } else {
      loginPage.style.display = "none";
      callPage.style.display = "block";

      //**********************
      //Starting a peer connection
      //**********************

      //getting local video stream
      navigator.webkitGetUserMedia({ video: true, audio: true }, function (myStream) {
         stream = myStream;

         //displaying local video stream on the page
         localVideo.src = window.URL.createObjectURL(stream);

         //using Google public stun server
         var configuration = {
            "iceServers": [{ "url": "stun:stun2.1.google.com:19302" }]
         };

         yourConn = new webkitRTCPeerConnection(configuration);

         // setup stream listening
         yourConn.addStream(stream);

         //when a remote user adds stream to the peer connection, we display it
         yourConn.onaddstream = function (e) {
            remoteVideo.src = window.URL.createObjectURL(e.stream);
         };

         // Setup ice handling
         yourConn.onicecandidate = function (event) {

            if (event.candidate) {
               send({
                  type: "candidate",
                  candidate: event.candidate
               });
            }

         };

      }, function (error) {
         console.log(error);
      });
   }
};

现在，如果您运行代码，则该页面应允许您登录并在该页面上显示本地视频流。

现在我们准备发起呼叫。首先，我们向其他用户发送报价。用户获得报价后，他将创建答案并开始交易ICE候选人。将以下代码添加到client.js文件：

//initiating a call
callBtn.addEventListener("click", function () {
   var callToUsername = callToUsernameInput.value;

   if (callToUsername.length > 0) {

      connectedUser = callToUsername;

      // create an offer
      yourConn.createOffer(function (offer) {
         send({
            type: "offer",
            offer: offer
         });

         yourConn.setLocalDescription(offer);

      }, function (error) {
         alert("Error when creating an offer");
      });
   }
});

//when somebody sends us an offer
function handleOffer(offer, name) {
   connectedUser = name;
   yourConn.setRemoteDescription(new RTCSessionDescription(offer));

   //create an answer to an offer
   yourConn.createAnswer(function (answer) {
      yourConn.setLocalDescription(answer);

      send({
         type: "answer",
         answer: answer
      });

   }, function (error) {
      alert("Error when creating an answer");
   });
};

//when we got an answer from a remote user
function handleAnswer(answer) {
   yourConn.setRemoteDescription(new RTCSessionDescription(answer));
};

//when we got an ice candidate from a remote user
function handleCandidate(candidate) {
   yourConn.addIceCandidate(new RTCIceCandidate(candidate));
};

我们增加一个点击处理程序呼叫按钮，从而启动的报价。然后，我们实现onmessage处理程序期望的几个处理程序。它们将被异步处理，直到两个用户都建立了连接。

最后一步是实现挂断功能。这将停止传输数据，并告诉其他用户关闭呼叫。添加以下代码：

//hang up
hangUpBtn.addEventListener("click", function () {

   send({
      type: "leave"
   });

   handleLeave();
});

function handleLeave() {
   connectedUser = null;
   remoteVideo.src = null;

   yourConn.close();
   yourConn.onicecandidate = null;
   yourConn.onaddstream = null;
};

当用户单击“挂断”按钮时-

• 它将向其他用户发送“离开”消息
• 它将关闭RTCPeerConnection并在本地破坏连接

现在运行代码。您应该能够使用两个浏览器选项卡登录到服务器。然后，您可以呼叫标签并挂断电话。

以下是整个client.js文件：

//our username
var name;
var connectedUser;

//connecting to our signaling server
var conn = new WebSocket('ws://localhost:9090');

conn.onopen = function () {
   console.log("Connected to the signaling server");
};

//when we got a message from a signaling server
conn.onmessage = function (msg) {
   console.log("Got message", msg.data);

   var data = JSON.parse(msg.data);

   switch(data.type) {
      case "login":
         handleLogin(data.success);
         break;
      //when somebody wants to call us
      case "offer":
         handleOffer(data.offer, data.name);
         break;
      case "answer":
         handleAnswer(data.answer);
         break;
      //when a remote peer sends an ice candidate to us
      case "candidate":
         handleCandidate(data.candidate);
         break;
      case "leave":
         handleLeave();
         break;
      default:
         break;
   }
};

conn.onerror = function (err) {
   console.log("Got error", err);
};

//alias for sending JSON encoded messages
function send(message) {
   //attach the other peer username to our messages
   if (connectedUser) {
      message.name = connectedUser;
   }

   conn.send(JSON.stringify(message));
};

//******
//UI selectors block
//******

var loginPage = document.querySelector('#loginPage');
var usernameInput = document.querySelector('#usernameInput');
var loginBtn = document.querySelector('#loginBtn');

var callPage = document.querySelector('#callPage');
var callToUsernameInput = document.querySelector('#callToUsernameInput');
var callBtn = document.querySelector('#callBtn');

var hangUpBtn = document.querySelector('#hangUpBtn');

var localVideo = document.querySelector('#localVideo');
var remoteVideo = document.querySelector('#remoteVideo');

var yourConn;
var stream;

callPage.style.display = "none";

// Login when the user clicks the button
loginBtn.addEventListener("click", function (event) {
   name = usernameInput.value;

   if (name.length > 0) {
      send({
         type: "login",
         name: name
      });
   }

});

function handleLogin(success) {
   if (success === false) {
      alert("Ooops...try a different username");
   } else {
      loginPage.style.display = "none";
      callPage.style.display = "block";

      //**********************
      //Starting a peer connection
      //**********************

      //getting local video stream
      navigator.webkitGetUserMedia({ video: true, audio: true }, function (myStream) {
         stream = myStream;

         //displaying local video stream on the page
         localVideo.src = window.URL.createObjectURL(stream);

         //using Google public stun server
         var configuration = {
            "iceServers": [{ "url": "stun:stun2.1.google.com:19302" }]
         };

         yourConn = new webkitRTCPeerConnection(configuration);

         // setup stream listening
         yourConn.addStream(stream);

         //when a remote user adds stream to the peer connection, we display it
         yourConn.onaddstream = function (e) {
            remoteVideo.src = window.URL.createObjectURL(e.stream);
         };

         // Setup ice handling
         yourConn.onicecandidate = function (event) {
            if (event.candidate) {
               send({
                  type: "candidate",
                  candidate: event.candidate
               });
            }
         };

      }, function (error) {
         console.log(error);
      });

   }
};

//initiating a call
callBtn.addEventListener("click", function () {
   var callToUsername = callToUsernameInput.value;

   if (callToUsername.length > 0) {

      connectedUser = callToUsername;

      // create an offer
      yourConn.createOffer(function (offer) {
         send({
            type: "offer",
            offer: offer
         });

         yourConn.setLocalDescription(offer);
      }, function (error) {
         alert("Error when creating an offer");
      });

   }
});

//when somebody sends us an offer
function handleOffer(offer, name) {
   connectedUser = name;
   yourConn.setRemoteDescription(new RTCSessionDescription(offer));

   //create an answer to an offer
   yourConn.createAnswer(function (answer) {
      yourConn.setLocalDescription(answer);

      send({
         type: "answer",
         answer: answer
      });

   }, function (error) {
      alert("Error when creating an answer");
   });
};

//when we got an answer from a remote user
function handleAnswer(answer) {
   yourConn.setRemoteDescription(new RTCSessionDescription(answer));
};

//when we got an ice candidate from a remote user
function handleCandidate(candidate) {
   yourConn.addIceCandidate(new RTCIceCandidate(candidate));
};

//hang up
hangUpBtn.addEventListener("click", function () {

   send({
      type: "leave"
   });

   handleLeave();
});

function handleLeave() {
   connectedUser = null;
   remoteVideo.src = null;

   yourConn.close();
   yourConn.onicecandidate = null;
   yourConn.onaddstream = null;
};

概要

该演示提供了每个WebRTC应用程序所需功能的基准。为了改进此演示，您可以通过Facebook或Google等平台添加用户标识，处理用户输入的无效数据。此外，由于多种原因（例如不支持该技术或无法穿越防火墙），WebRTC连接可能会失败。使任何WebRTC应用程序稳定的工作量很大。
