vue3表格应用:实现多个表格同时滚动并固定表头

学习下vue3表格应用:实现多个表格同时滚动并固定表头。

说明:这里需分为两种情况来做。第一种亲情况就是没有修改过el-table这个组件的样式;第二种情况就是修改过el-table组件的样式。第一种较为简单就简单略过,这里主要提及第二种做法。

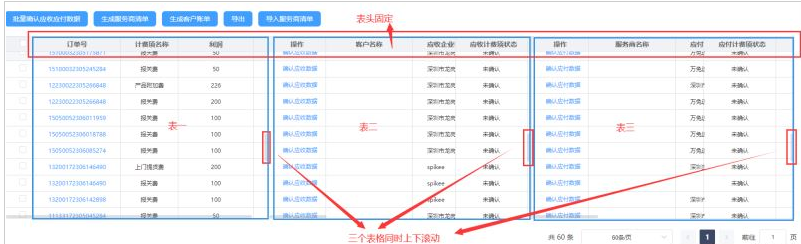

需求效果

vue3表格应用:实现多个表格同时滚动并固定表头

2.第一种没有修改过el-table这个组件的样式的做法

(1)直接看大佬vue2的做法

element ui 实现多个table同时滚动,横向纵向滚动

代码如下:

<script src="//unpkg.com/vue/dist/vue.js"></script>
<script src="//unpkg.com/element-ui@2.15.6/lib/index.js"></script>
<div id="app">
<template>
    <el-table
      ref="table1"
      border="10"
      height="150"
      :data="tableData"
      style="width: 800px">
      <el-table-column
        prop="date"
        label="日期"
        width="300">
      </el-table-column>
      <el-table-column
        prop="name"
        label="姓名"
        width="300">
      </el-table-column>
      <el-table-column
        width="300px"
        prop="address"
        label="地址">
      </el-table-column>
            <el-table-column
        width="300px"
        prop="address"
        label="地址">
      </el-table-column>
    </el-table>


    <el-table
      ref="table2"
      border="10"
      height="150"
      :data="tableData"
      style="width: 800px">
      <el-table-column
        prop="date"
        label="日期"
        width="300">
      </el-table-column>
      <el-table-column
        prop="name"
        label="姓名"
        width="300">
      </el-table-column>
      <el-table-column
        width="300px"
        prop="address"
        label="地址">
      </el-table-column>
            <el-table-column
        width="300px"
        prop="address"
        label="地址">
      </el-table-column>
    </el-table>
  </template>
</div>
var Main = {
      data() {
        return {
          tableData: [{
            date: '2016-05-02',
            name: '王小虎',
            address: '上海市'
          }, {
            date: '2016-05-04',
            name: '王小虎',
            address: '上海市'
          }, {
            date: '2016-05-04',
            name: '王小虎',
            address: '上海市'
          }, {
            date: '2016-05-04',
            name: '王小虎',
            address: '上海市'
          }],
          dom1: null,
          dom2: null
        }
      },
      mounted() {
        this.dom1 = this.$refs.table1.bodyWrapper
        this.dom2 = this.$refs.table2.bodyWrapper

        this.listenerScroll()
      },
      methods: {
        listenerScroll() {
          this.dom2.addEventListener('scroll', () => {
            // 横滚
            this.dom1.scrollLeft = this.dom2.scrollLeft
            // 竖滚
            this.dom1.scrollTop = this.dom2.scrollTop
          })
        }
      }
    }
var Ctor = Vue.extend(Main)
new Ctor().$mount('#app')


(2)以下是vue3写法(可以直接使用看看效果,没效果的就看第二种方法)

<template>
  <div>
      <el-table ref="table1" :data="tableData" style="width: 100%; margin-bottom: 20px" height="200px">
          <el-table-column prop="date" label="Date" width="180"></el-table-column>
          <el-table-column prop="name" label="Name" width="180"></el-table-column>
      </el-table>
      <el-table ref="table2" :data="tableData" style="width: 100%" height="200px">
          <el-table-column prop="address" label="Address" width="180"></el-table-column>
          <el-table-column prop="tag" label="Tag" width="180"></el-table-column>
      </el-table>
  </div>
</template>

<script setup>
import { ref, onMounted } from 'vue'
import { ElTable } from 'element-plus'
const table1 = ref(null)
const table2 = ref(null)
let overElement = ""
onMounted(() => {
  const table1Wrapper = table1.value.$refs.bodyWrapper
  const table2Wrapper = table2.value.$refs.bodyWrapper
  console.log("table1Wrapper",table1Wrapper);
  table1Wrapper.addEventListener('mouseover', () => {
      overElement = "a"
      console.log("overElement1",overElement);
  })
  table2Wrapper.addEventListener('mouseover', () => {
      overElement = "b"
      console.log("overElement2",overElement);
  })
  table1Wrapper.addEventListener('scroll', () => {
      console.log("overElement3",overElement);
      if (overElement === "a") {
      console.log("overElement4",overElement);
          table2Wrapper.scrollTop = table1Wrapper.scrollTop
      }
  })
  table2Wrapper.addEventListener('scroll', () => {
      console.log("overElement5",overElement);
      if (overElement === "b") {
      console.log("overElement6",overElement);
          table1Wrapper.scrollTop = table2Wrapper.scrollTop
      }
  })
})
const tableData = [
  {
      date: '2016-05-03',
      name: 'Tom',
      address: 'No. 189, Grove St, Los Angeles',
      tag: 'Home',
  },
  {
      date: '2016-05-02',
      name: 'Tom',
      address: 'No. 189, Grove St, Los Angeles',
      tag: 'Office',
  },
  {
      date: '2016-05-04',
      name: 'Tom',
      address: 'No. 189, Grove St, Los Angeles',
      tag: 'Home',
  },
  {
      date: '2016-05-01',
      name: 'Tom',
      address: 'No. 189, Grove St, Los Angeles',
      tag: 'Office'
  }
]
</script>

3.第二种修改过el-table组件的样式

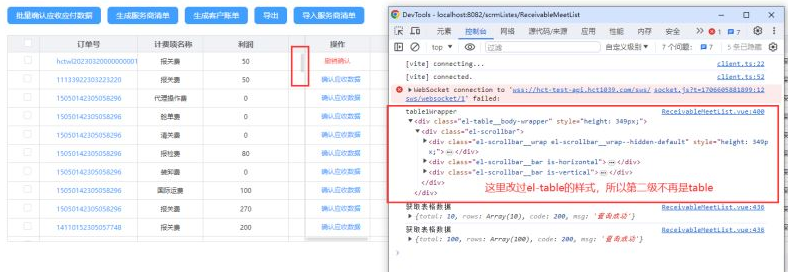

(1)我这里是修改过el-table的滚动条样式

vue3表格应用:实现多个表格同时滚动并固定表头

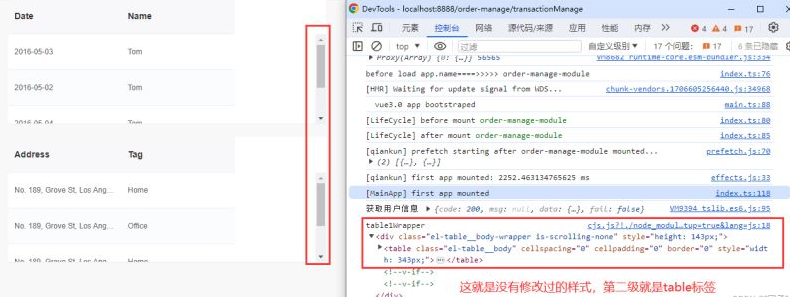

(2)以下没修改过的

vue3表格应用:实现多个表格同时滚动并固定表头

(3)原因分析

从上面两张图片可以看出,它们区别在于输出的(table1Wrapper )第二级一个事table标签,一个不是table标签。所以像第二种修改过el-table组件样式的就不再适用第一种的写法,因为没有拿对节点,要拿的节点不再是.el-table__body-wrapper而是.el-scrollbar__wrap,其他写法就与第一种写法无异。

(4)实现代码

<div>
    <el-table :data="tableData" id="table1" @selection-change="handleSelect" border height="40vh" scrollbar-always-on>
        <el-table-column width="60" fixed type="selection" />>
        <el-table-column width="120" prop="omsCostItemDto.costName" label="计费项名称" />
        <el-table-column prop="omsCostItemDto.profit" label="利润" />
        <el-table-column width="100" prop="omsCostItemDto.merchandiser" label="跟单员" />
    </el-table>
    <el-table :data="tableData" id="table2" border height="40vh" scrollbar-always-on>
        <el-table-column width="120" prop="omsReceiveDto.writeOffAmount" label="核销金额" />
        <el-table-column width="120" prop="omsReceiveDto.notReceivedAmount" label="未收金额" />
        <el-table-column width="180" prop="omsReceiveDto.receiveCreateDate" label="账单生成时间" />
    </el-table>
    <el-table :data="tableData" id="table3" border height="40vh" scrollbar-always-on>
        <el-table-column width="180" prop="omsPayDto.serviceProvidersName" label="服务商名称" class-name="unconfirmed" />
        <el-table-column width="180" prop="omsPayDto.meetName" label="应付企业名称" />
    </el-table>
</div>
onMounted(() => {
    getList(); // 获取列表数据

    setTimeout(() => { // 实现同步竖向滚动
        nextTick(() => {
            let table1Wrapper = document.getElementById('table1').getElementsByClassName('el-scrollbar__wrap')[0]
            let table2Wrapper = document.getElementById('table2').getElementsByClassName('el-scrollbar__wrap')[0]
            let table3Wrapper = document.getElementById('table3').getElementsByClassName('el-scrollbar__wrap')[0]
            console.log("table1Wrapper",table1Wrapper);
            table1Wrapper.addEventListener('scroll', () => {
                table2Wrapper.scrollTop = table1Wrapper.scrollTop;
                table3Wrapper.scrollTop = table1Wrapper.scrollTop;
            })
            table2Wrapper.addEventListener('scroll', () => {
                table1Wrapper.scrollTop = table2Wrapper.scrollTop;
                table3Wrapper.scrollTop = table2Wrapper.scrollTop;
            })
            table3Wrapper.addEventListener('scroll', () => {
                table1Wrapper.scrollTop = table3Wrapper.scrollTop;
                table2Wrapper.scrollTop = table3Wrapper.scrollTop;
            })
        })
    }, 1000);
})

(5)代码说明

1.为什么要放到onMounted里

可以放在一个方法里,但是也需要放在onMounted,这样就可以监听到滚动事件而不需要用watch来监听

2.为什么要使用setTimeout和nextTick

照理来说使用onMounted声明周期就可以了,因为它的作用是挂在后,数据和节点都已经生成;我这里不知道什么原因不使用setTimeout和nextTick就拿不到节点,数据倒是已生成(可能是我把getList(); // 获取列表数据放在了前面)

3.重点

重点在于document.getElementById(‘table1’).getElementsByClassName(‘el-scrollbar__wrap’)[0]获取正确的节点,第一种情况和第二种情况区别在于怎么拿到对的节点

4.总结

说白会出现第一种情况和第二种情况在于节点没有拿对
